Ceramic Tile Squaring and Chamfering Machine Line

BASAIR > Equipment > Ceramic Tile Squaring and Chamfering Machine Line

BASAIR provides ceramic tile squaring and chamfering machine lines for dry grinding and wet grinding production. The equipment is used to correct tile dimensions, finish tile edges and support stable ceramic or porcelain tile production.

Tile Edge Before Processing

Finished Edge After Processing

Dry Grinding

Dry grinding squaring and chamfering lines are used when a factory wants edge processing without water in the grinding section. This setup can simplify wastewater handling and is often selected for production lines where dry dust collection and dry diamond tools are part of the process design.

Main Applications

Ceramic tile edge squaring
Porcelain tile edge finishing
Dry chamfering before sorting or packaging
Production lines that require dry dust collection
Factories that want to reduce water use in edge grinding

Key Features

Stable tile positioning during dry edge grinding
Compatible dry diamond squaring wheels
Controlled chamfering for cleaner tile edges
Dust collection interface or layout consideration
Practical adjustment for different tile sizes

Wet Grinding

Wet grinding squaring and chamfering lines use water during edge grinding. This process is commonly used when cooling, dust control and surface cleanliness are important in the tile finishing stage.

Main Applications

Ceramic and porcelain tile squaring
Edge grinding with water cooling
Chamfering for finished tile edges
Production lines already designed with water circulation
Factories that prefer wet grinding stability

Key Points to Present

Water-assisted edge grinding
Compatible wet diamond squaring wheels
Reduced heat during grinding
Stable edge finish across continuous production
Integration with water circulation or sludge handling systems

Model No.	BSM600	BSM800	BSM1000	BSM1200	BSM1600	BSM2700
Min. Workable Size (mm)	200	250	250	350	400	500
Max. Workable Size (mm)	600	800	1000	1200	1600	2700
Max. Workable Thickness (mm)	3 – 30
Feeding rate (m/1′)	10 – 40
Squaring Spindles (On One Side)	5 – 18
Chamfering Spindles (On One Side)	1 – 3
Power Of Squaring Spindles (kW)	3.5 – 4 – 5.5
Power Of Chamfering Spindles (kW)	1.5 – 2.2
Power Of Main Transmission (kW)	7.5 – 11 – 15

Configuration Options

BASAIR can configure the squaring and chamfering line according to the production target, tile size range and required edge finish.

Common configuration factors include:

Number of squaring heads
Number of chamfering heads
Dry or wet squaring process
Tile width and thickness range
Conveyor and alignment setup
Diamond wheel type and position
Required production capacity
Compatibility with upstream and downstream equipment

The right configuration depends on the factory’s tile format, surface type, quality target and daily output requirement.

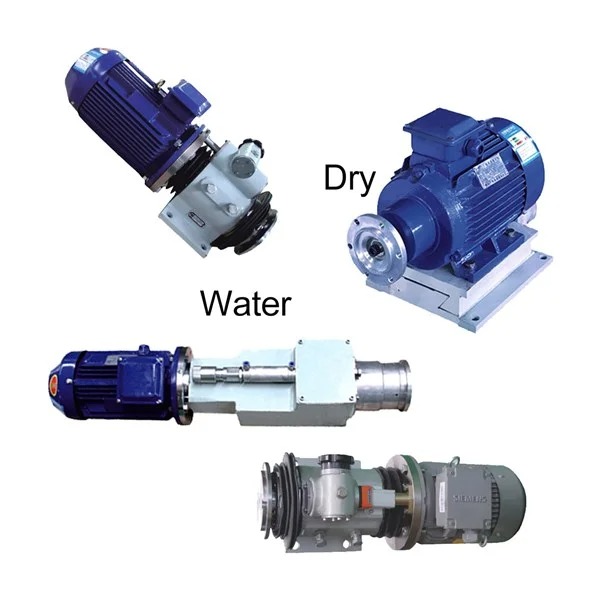

Accessories

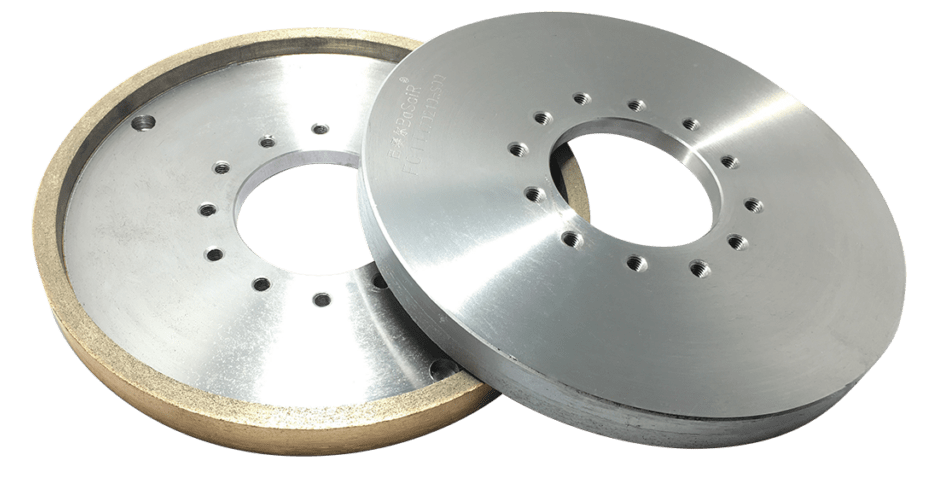

The squaring and chamfering machine line depends on matching accessories and consumables. BASAIR can supply matching diamond tools and machine accessories for squaring and chamfering lines, helping factories maintain stable edge quality during long-term production.
